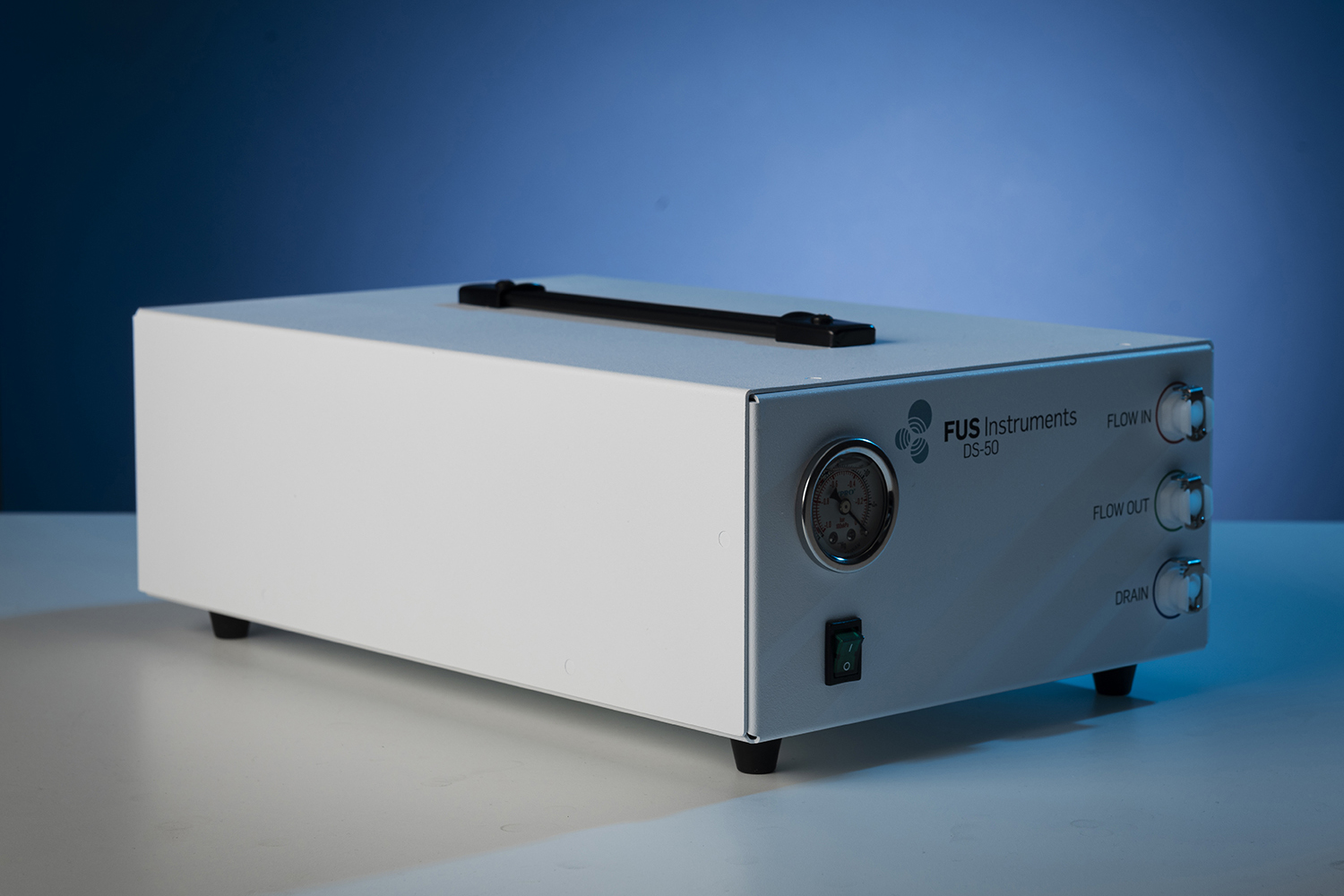

Degassed Water On Demand

The DS-50 is a portable water degasser that produces on-demand degassed water suitable for ultrasound studies or any other laboratory applications required low levels of dissolved gases in water. The system can extract dissolved gases from water efficiently for use in focused ultrasound experiments.

The DS-50 makes the process of degassing water for ultrasound and laboratory studies simple and repeatable. The use of high-quality internal components ensures reliable performance for years. Its compact form-factor makes its easily portable for use in the laboratory or at the MRI.

Key Features

  • Portable: The compact size makes the DS-50 easy to transport and takes up minimal bench space.
  • High Performance: The DS-50 achieves a dissolved oxygen levels below 2 mg/L.
  • Dual-Mode: An internal pump enables transfer of degassed water into a container from a reservoir, or continuous recirculation in a tank.
  • Spill protection: An internal pressure-relief valve and drain line avoids internal leaks in the event of improper connections or tube blockage.
  • On-line monitoring: Vacuum levels are displayed on a panel-mounted gauge to confirm proper operation.

Specifications

Mechanical
Flow Rate 500 mL/min
Vacuum Level -26 inHg (100 Torr)
Dissolved Oxygen Removal
Direct Mode <2 mg/L at output port
Recirculating Mode

(1L tank)

 <3 mg/L (3 minutes)

<2 mg/L (10 minutes)
General Specifications
Power Supply 24V DC, 2.7A (incl)
Electrical input 100-240VAC
Dimensions

(WxHxL)

 9 x 4.5 x 15 inches

23 x 11.4 x 38 cm
Weight 11 lbs (5 kg)

Accessories

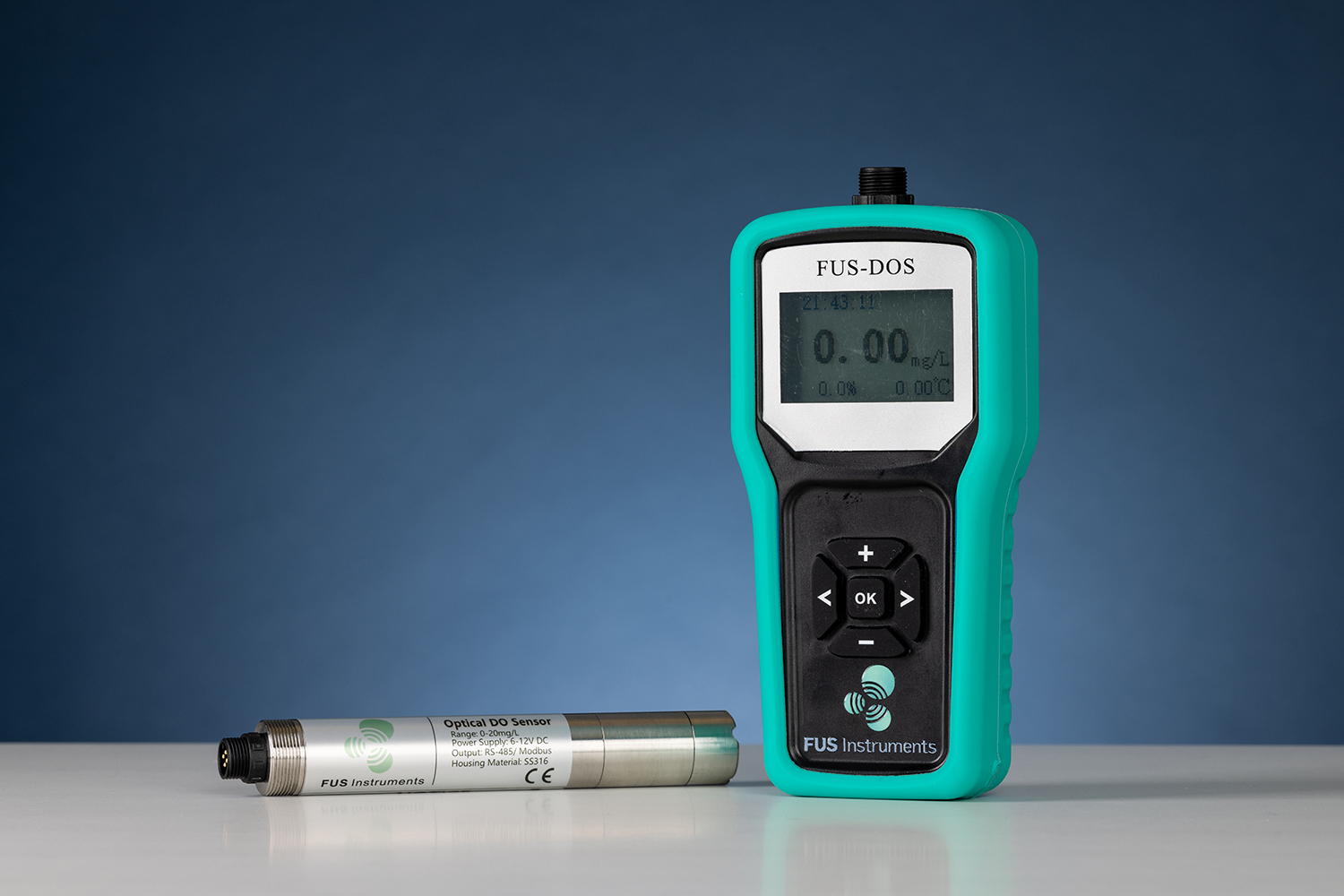

Dissolved Oxygen Sensor

Learn More >

Extended Warranty

Learn More >
