Small Portable Focused Ultrasound System
Please update the main blurb text to the following:

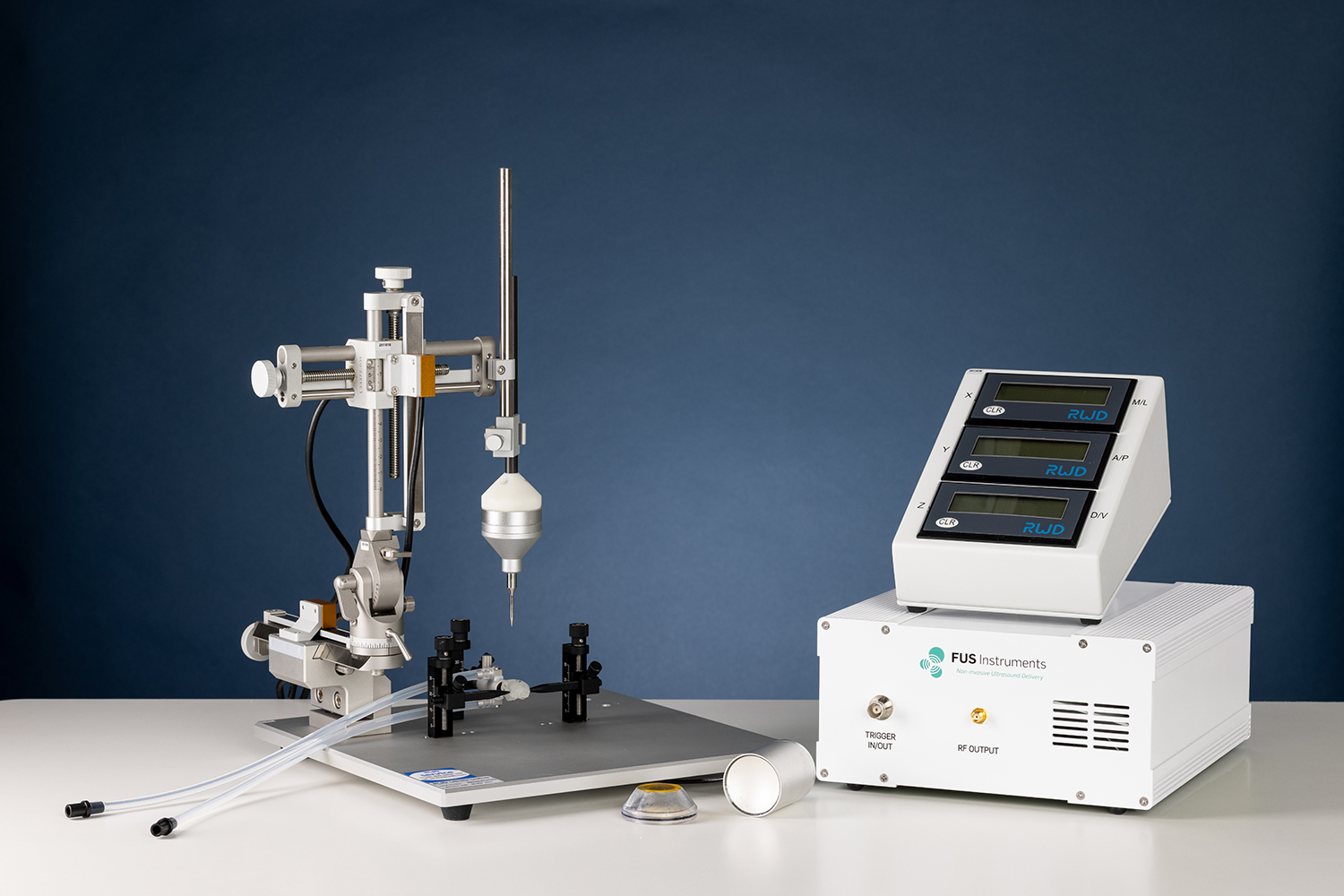

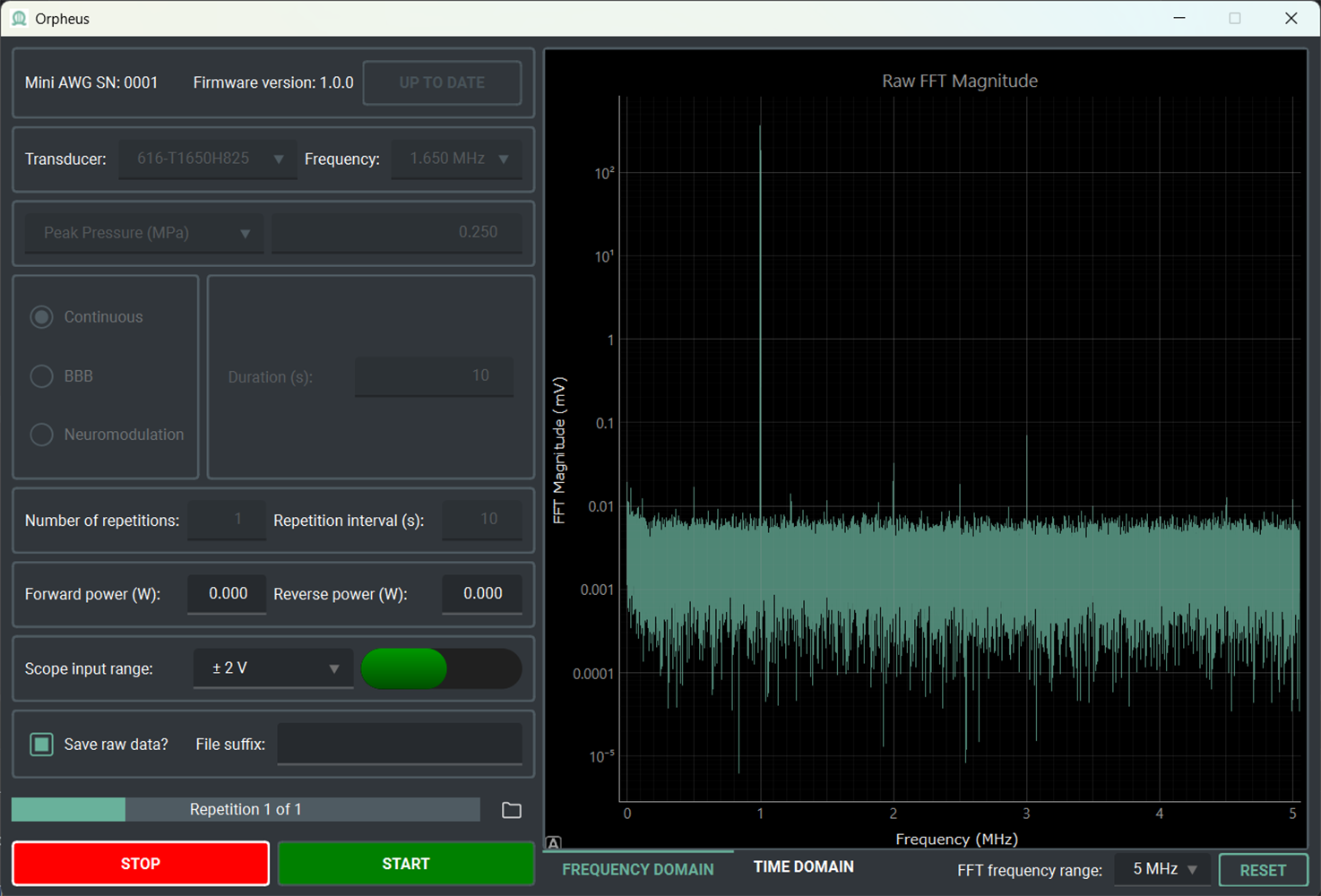

The RK-20 is a portable focused ultrasound system that integrates into a standard stereotactic frame. A single-element focused ultrasound transducer can be positioned to deliver energy to precise brain regions using stereotactic localization. The system comes with an optional hydrophone and digital receive electronics to monitor acoustic emissions from the brain. A compact RF generator can be controlled from any standard computer via USB using a graphical software interface.
The stereotactic frame pictured here is not included.
Customized acoustic exposures can be delivered from the transducer including continuous waves, bursts, and gated bursts studies.
The RK-20 is used for investigations ranging from tissue ablation to increasing the permeability of the blood-brain barrier and neuromodulation. It is a versatile, cost-effective platform that serves as an entry-point for neuroscience groups to explore the potential of focused ultrasound to augment research programs or open up new avenues for research.
Specifications
| Transducer | RK-20 | RK20-H |
|---|---|---|
| Frequency | 0.55 | 1.2, 1.65 MHz |
| Diameter | 35 mm | 35 mm |
| ROC | 24.5 mm | 24.5 mm |
| F# | 0.7 | 0.7 |
| Hydrophone | None | Central PCD |
| Diameter | None | 9 mm |
| RF Generator | RK-20 | RK20-H |
|---|---|---|
| Electrical Power | 10W Max | 10W Max |
| Bandwidth | 0.5-20 MHz | 0.5-20 MHz |
| Modes | Continuous,
Burst, Gated Burst |
Continuous,
Burst, Gated Burst |
| PRF | <10 kHz | <10 kHz |
| Burst | > 1 µs | > 1 µs |
| Power Monitoring | RK-20 | RK20-H |
|---|---|---|
| Measurement | Forward & Reflected Power | Forward & Reflected Power |
| Sampling Rate | >10 kHz | >10 kHz |
| Resolution | 12 bit | 12 bit |
| Communication | USB 2.0 | USB 2.0 |
| Cavitation Monitoring | RK-20 | RK20-H |
|---|---|---|
| Sampling Rate | None | 25 MHz |
| Resolution | None | 12 bit |
| Communication | USB 3.0 | USB 3.0 |

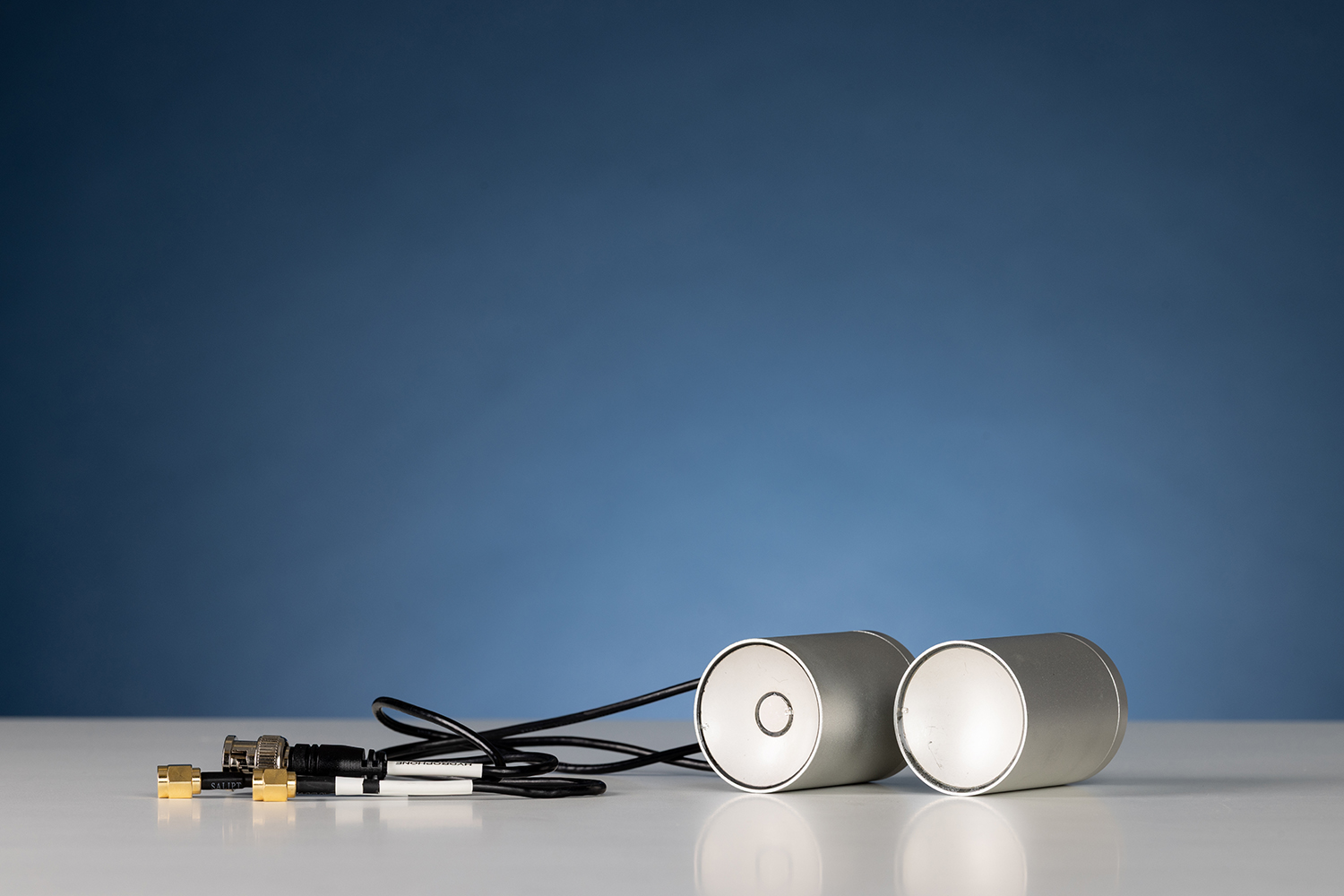

In-House Custom-Built Calibrated Transducers (TX-50)
When your research demands a unique approach, our engineering team is ready to build it.
All transducers manufactured by FUS Instruments undergo rigorous calibration and testing. Transducers are leak tested and impedance matched. They then undergo calibration at the focus in water with a calibrated needle hydrophone to measure the spatial dimensions of the pressure focus, and also to calibrate the voltage to pressure relationship. Radiation force measurements are obtained for each transducer to quantify the transducer efficiency.
Housing Specifications
- Anodized Aluminium, ø38mm, height 50 mm
- Waterproof up to 0.5 m
- Easy-to-mount, magnetic south pole facing end cap
- Side exiting 0.3 m × 50 Ohm coaxial cables
- Transducer cable with SMA Male Plug
- Hydrophone cable with BNC Male Plug (Optional)
- RF Connectors are not submersible
Centrally located hydrophones enable passive cavitation detection.
An RF impedance matching network to 50 Ohm is supplied with each transducer and tuned to the fundamental resonant frequency. An optional third harmonic RF impedance matching network allows operation around three (3) times the fundamental frequency. The matching networks include BNC and SMA connectors in an aluminum, RF shielded enclosure.
| Model | Transducer Fo | FWHM Lateral | FWHM Axial | Hydrophone Aperture | Hydrophone F0 |
|---|---|---|---|---|---|
| TX-50-1650 | 1.65 MHz | 0.9 mm | 5.0 mm | ø9 mm (optional) | 0.825 MHz |
| TX-50-1200 | 1.20 MHz | 1.2 mm | 6.8 mm | ø9 mm (optional) | 0.600 MHz |
| TX-50-0550 | 0.55 MHz | 2.6 mm | 17.2 mm | ø9 mm (optional) | 0.825 MHz |
Ultrasound applications of the TX-50 transducer series include, but are not limited to, increasing the permeability of the blood-brain barrier, neuromodulation, sonodynamic therapy, and thermal ablation. Spherically focused TX-50 transducers have an f-number of 0.7 and ø 35 mm aperture.
High Quality Components
All our systems are constructed using high-quality components sourced from trusted vendors.
